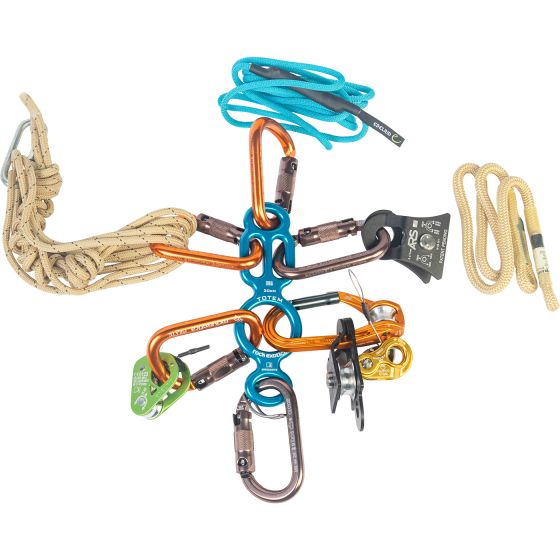

Kit, Adaptable Vertical Response Rack (Avrr)

Haul / Mechanical Advantage Capability - Multiple simple, compound and complex configurations ranging from a 2:1 through 9:1
Full spectrum Friction Configurations for Rappels, Bail-outs, And One or Two Person Lowering Systems
Traditional and Mechanical Advantage assisted Ascending Techniques
Multiple Basic and Anchor Configurations to Include Contingency and Releasable Systems
Load Transfer Capabilities to include Knot Passing on Rappel and within a system and casualty Pick-Offs
Description
The Adaptable Vertical Response Rack was designed meet and exceed full-spectrum operational vertical requirements for urban through mountain / canyon access, rescue, and evacuation variables. The kit capabilities were driven utilizing NFPA 1006 (Operations & Technician Level) JPR's (Job Performance Requirements) and the KPP's (Key Performance Parameters) within the USSOCOM SOF CASEVAC Program framework. The A-VRR kits organic versatility allows it to be scaled up to meet all relevant JPR's (Job Performance Requirements) for complex team access and/or rescue or be scaled down for a "fast & light" mission specific assault configuration. P-A-C-E (Primary, Alternate, Contingency, and Emergency) methodology was engineered throughout the kit design, enabling multiple options for progressive capture and rope grab capabilities depending on the environmental pathology.

Specs
Kit Contents
1 x Totem Multi Function Descent Control Device
1 x Oval Auto-lock Carabiner
1 x Oval Auto-lock Carabiner with Wire Eye
3 x HMS Auto-lock Carabiner
1 x MagnaPulley 7/16 in. Small Pulley Pair - with and without Becket
1 x Pulley with Integrated Rope Grab
1 x H-Frame Non-Locking Carabiner with Integrated Pulley
1 x Rope Clamp / Ascender
1 x 6mm TRC Cord - 16 ft
1 x 7mm VT Prusik
1 x Edelrid HMPE Cord Blue Sling - 120 CM
1 x 7mm Screw Link
Dimensions:
12 in. x 15 in. (bag)
3.25 lb (for packaged kit)
