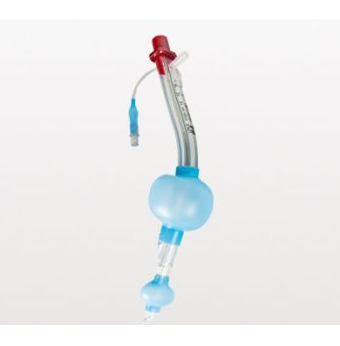

KING LTS-D Airway Kit - SIZE 4

Custom packaged for Tactical Medics in a rugged, vacuumed-sealed bag
Average insertion time less than 15 seconds
Smaller, softer tip for easier placement
Shorter tube length
New tapered ramp design provides additional ventilation outlets
The King LTS-D from North American Rescue is an exclusive supraglottic airway kit packaged especially for tactical medics who need reliability, durability and versatility for emergency airway management. The kit is designed for positive pressure ventilation over 30 cm H2O and spontaneously breathing patients, yet offers the unique ability to easily pass a gastric tube through a second channel of the airway and into the esophagus and stomach. The anatomically shaped distal tip and cuff of the King LTS-D assist in the airway's passage behind the larynx and into the normally collapsed esophagus. The second lumen, which is open at the distal tip of the tube, provides three key additional benefits (1) passage of gastric tube (up to 18 French) (2) channel for regurgitation and (3) provides "vent" for gastric pressure and stomach decompression.
Contents:
King LTS-D Supraglottic Airway Device
Gastric Diverter
Ventilation Extension Tube
60cc Syringe
18F Gastric Tube
Sterile Lubricant
Plastic Vacuum Bag
Specifications:
Color Size Patient Height Inflation Volume
Yellow 3 <61" 60 ml
*Red 4 61"- 71" 60 ml
Purple 5 >71" 60 ml
* Recommended Size
Dimensions:
Folded: H 4 in. x W 11.43 in. x D 1.92 in.
Unfolded: H 8 in. x W 13.36 in. x D 1.22 in.
Weight: 5.79 oz

Supraglottic airway device custom packaged for tactical medics
Unique dual channel design, anatomically shaped distal tip/cuff & open second lumen
Provides for the passage of a gastric tube (up to 18 French) for regurgitation and a "vent" for gastric pressure & stomach decompression
Tapered ramp design provides additional ventilation outlet
Description
The King LTS-D™ from North American Rescue® is an exclusive supraglottic airway kit packaged especially for tactical medics who need reliability, durability and versatility for emergency airway management. The kit is designed for positive pressure ventilation over 30 cm H2O and spontaneously breathing patients, yet offers the unique ability to easily pass a gastric tube through a second channel of the airway and into the esophagus and stomach. The anatomically shaped distal tip and cuff of the King LTS-D™ assist in the airway's passage behind the larynx and into the normally collapsed esophagus. The second lumen, which is open at the distal tip of the tube, provides three key additional benefits (1) passage of gastric tube (up to 18 French) (2) channel for regurgitation and (3) provides "vent" for gastric pressure and stomach decompression.

Specs
Supraglottic airway device custom packaged for tactical medics
Unique dual channel design, anatomically shaped distal tip & cuff & open second lumen
Provides for the passage of a gastric tube (up to 18 French) for regurgitation and a "vent" for gastric pressure & stomach decompression
Smaller, softer tip for easier placement
Shorter tube length
New tapered ramp design provides additional ventilation outlets
Size 3 (Yellow) | Patient Height: <61 in.
Size 4 (Red) | Patient Height: 61 in. - 71 in.
Inflation Volume: 60 ml
Kit Contents:
1 x King LTS-D™ Supraglottic Airway Device - Size 4
1 x Sterile Lubricant
1 x Syringe - 60cc
1 x Gastric Tube (18F) and Diverter
Dimensions:
Folded: H 4 in. x W 11.43 in. x D 1.92 in.
UnFolded: H 8 in. x W 13.36 in. x D 1.22 in.
Weight: 5.79 oz
